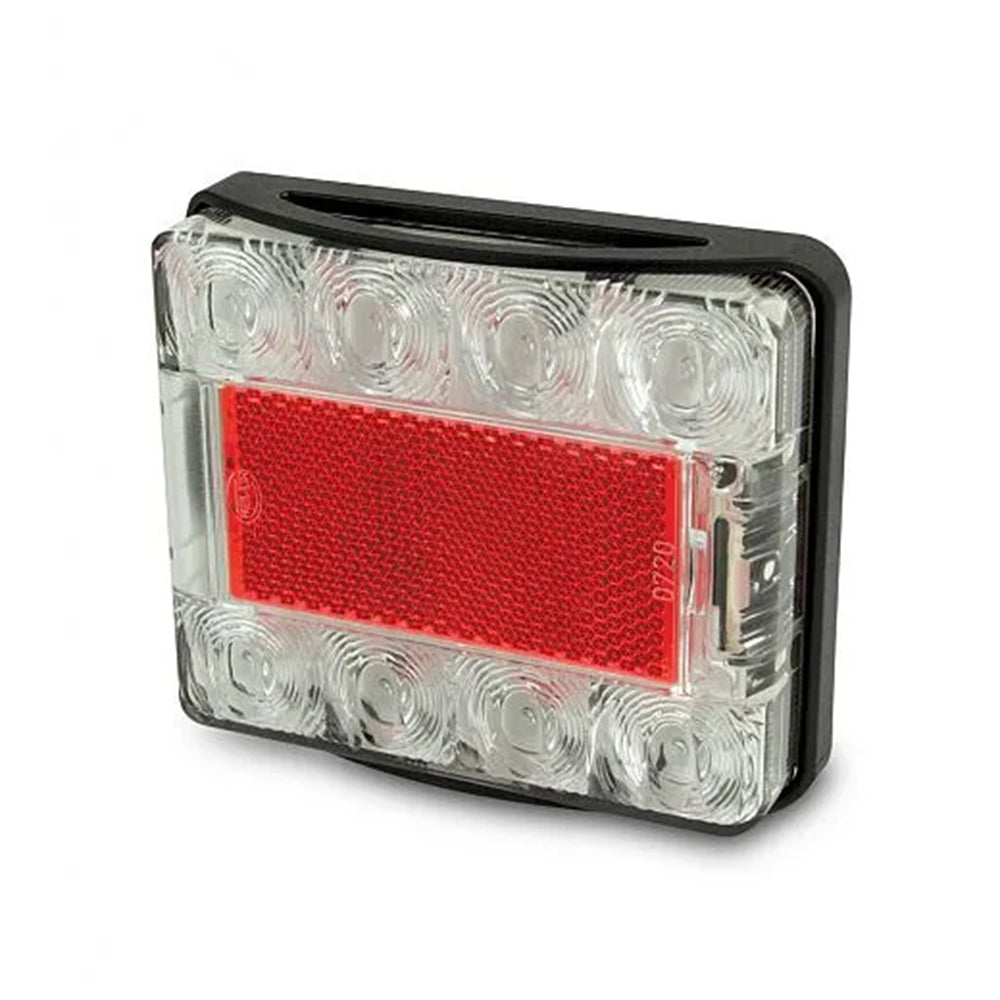

LED Stop/Rear Position/Rear Direction Indicator Lamp

Small but powerful: Meet the complex all rounder, HELLA's compact size LED lamp featuring stop, rear position and rear direction indicator lamp with an 18cm² red retro reflector. Sophisticated clear lens design with black mounting base. Optic appears clear until illuminated.

Suitable for small/medium utes, trucks, trailers.

Convenient mounting base with multiple fixing points.
Easy fitment to most trailers/vehicles.

Better Visibility. More Safety:
Distinctive lit up appearance on rear position/stop function increases visibility and awareness.

Low power consumption. Long service life:
Economical running costs.

Tough under pressure:
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable. Durable ultra long service life:
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Optics: Optic appears clear until illuminated

Mounting:
Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting.

Voltage: Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption
Stop: 2W
Rear position: 1W
Rear direction indicator: 2W

Protection:
Reverse polarity and transient spike circuit protection.
IP 6K7 (Protection against dust and temporary water immersion).
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning).

Cable Length:
2394 Pre-wired with 0.5m of sheathed multi-core cable.
2394-6M Pre-wired with 6m of sheathed multi-core cable.

Spare Part:
9.2394.08 Mounting base
9.2394.09 Mounting spacer (not included)

Lens Material: Grilamid®

Compliance:
ADR 6/00: Cat 2a
ADR 47/00
ADR 49/00

*Warranty: This LED-based lighting product carries a 5-year warranty covering faults in materials, components or workmanship.
