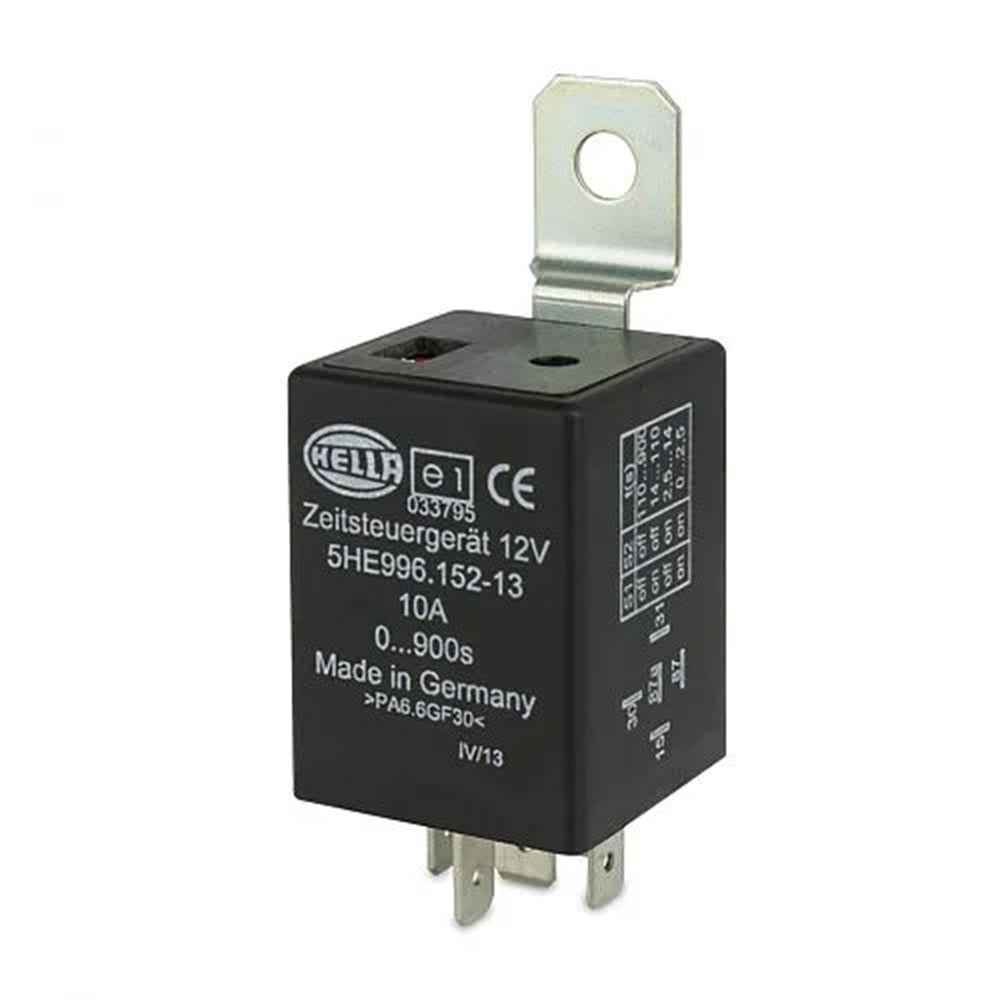

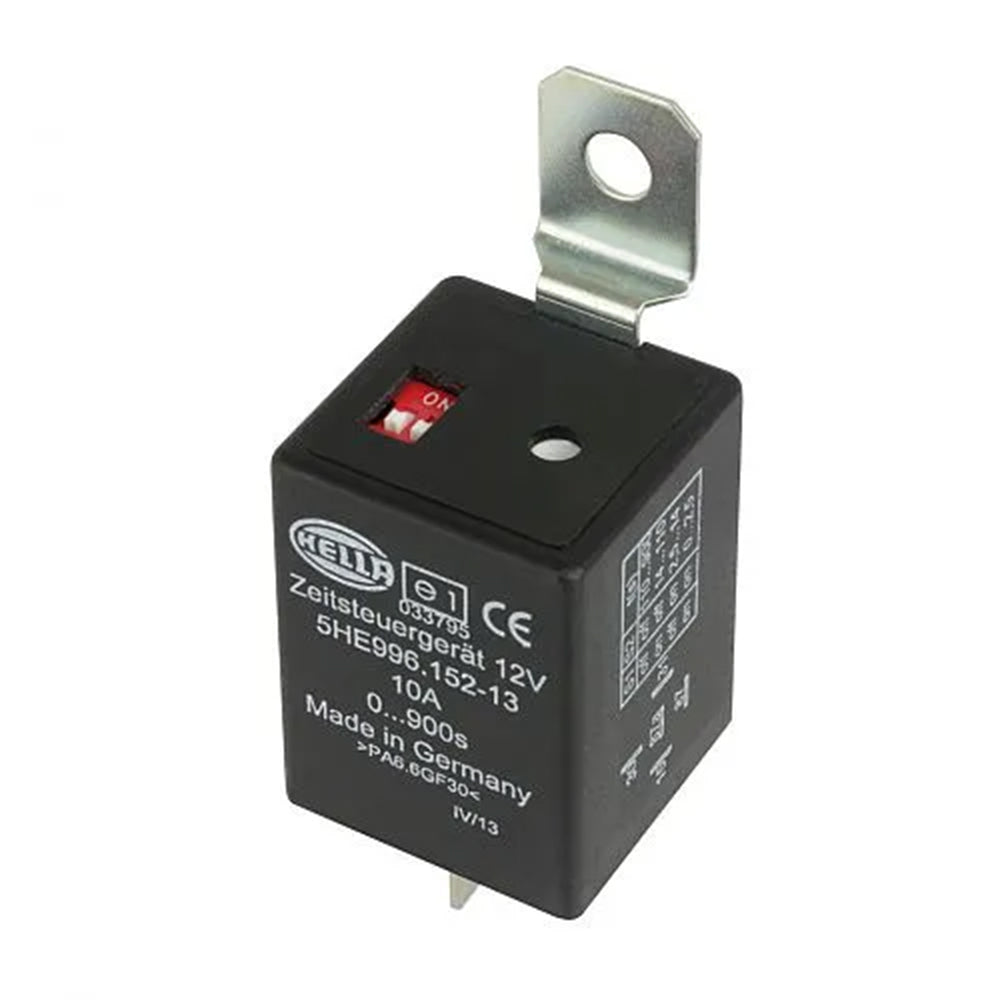

12V 5 Pin Time Control Unit with Drop-out Delay - 20/10A

SKU: 07-3086
Regular price $85.00 inc. GST

Relay with manually adjustable drop-out delay function, 0 - 900 seconds.

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production HELLA can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

Specifications:
Voltage: 12V
Pins: 5 Pin
Function: Change-over
Maximum Load:
Contact opened 10A
Contact closed 20A/30min
Bracket: Yes
Protection: IP 50 (Protection against dust)
Note:
Relay with manually adjustable drop-out delay function, 0 - 900 seconds.

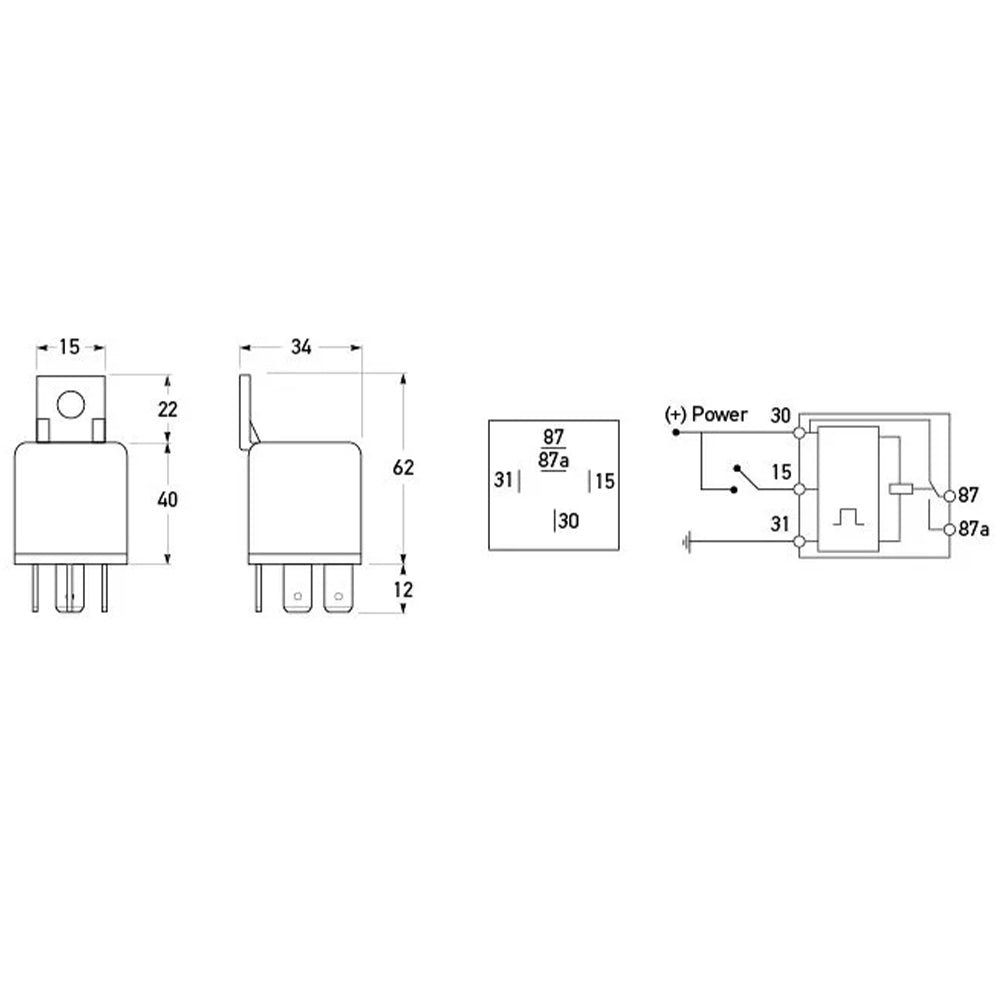

Applying +ve power to terminal 15 will close the n/o relay contacts.
Disconnecting +ve power from terminal 15 will then activate the timer feature, relay contacts 30 & 87 opening following the pre-adjusted time 0 - 900 seconds.
+ve to terminal 30 is required for timer operation, removing will cancel timer sequence and open contacts 30 & 87.
